An alternative method for preparing the model

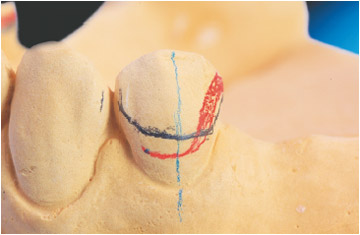

The clasp arm position is measured and marked in place.

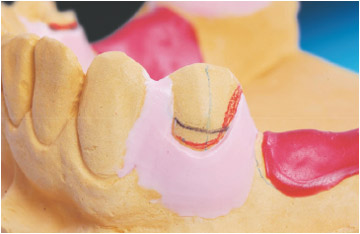

All cervical areas on the clasped tooth are blockedout, directly under the intended position of the clasp arm.

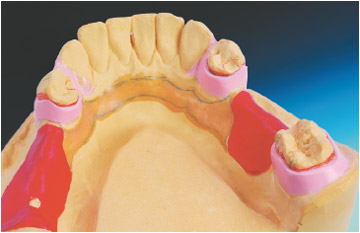

A step is carved into the wax, exactly along the intended path of the clasp.
