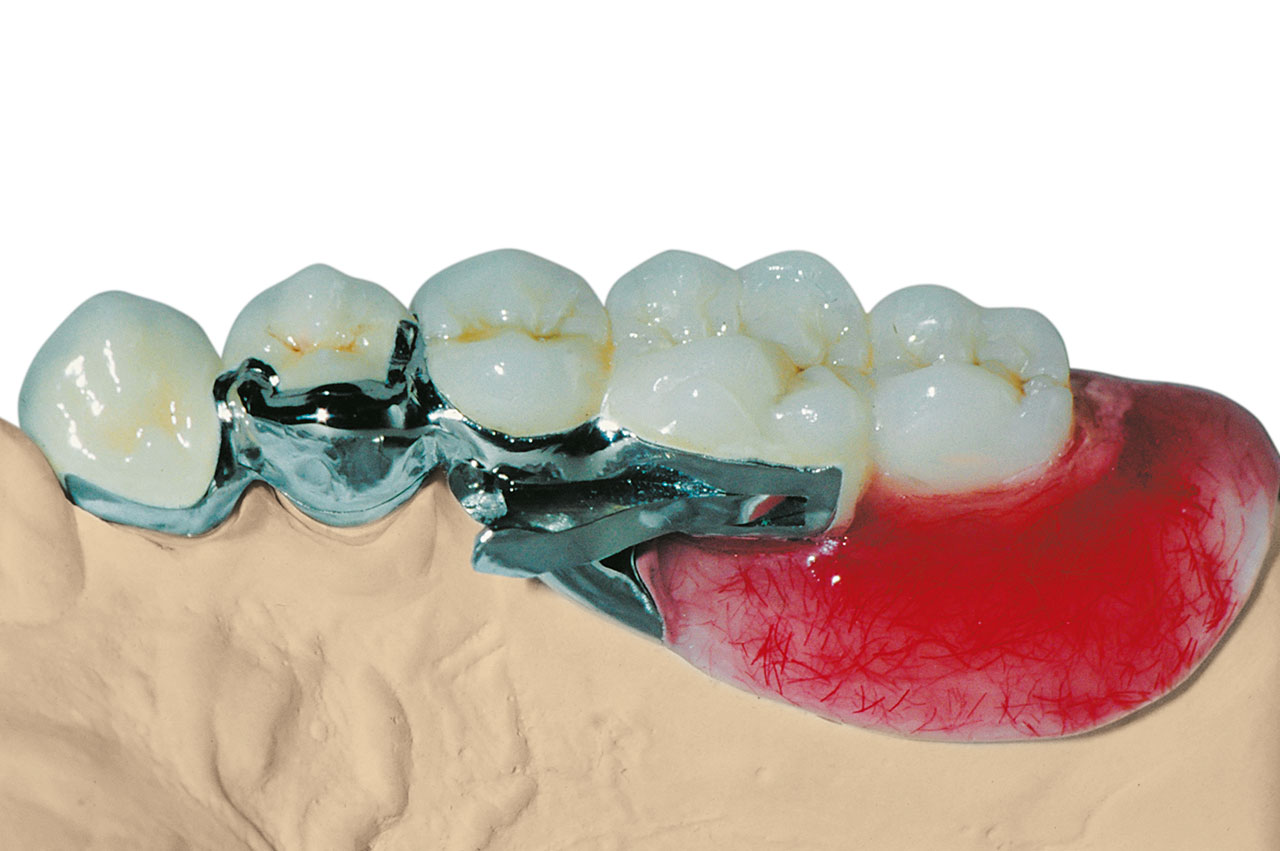

Finished swinglock denture

All parts of the lock denture processed and put together. The lock axis can be revited or laser welded with the lock-housing.

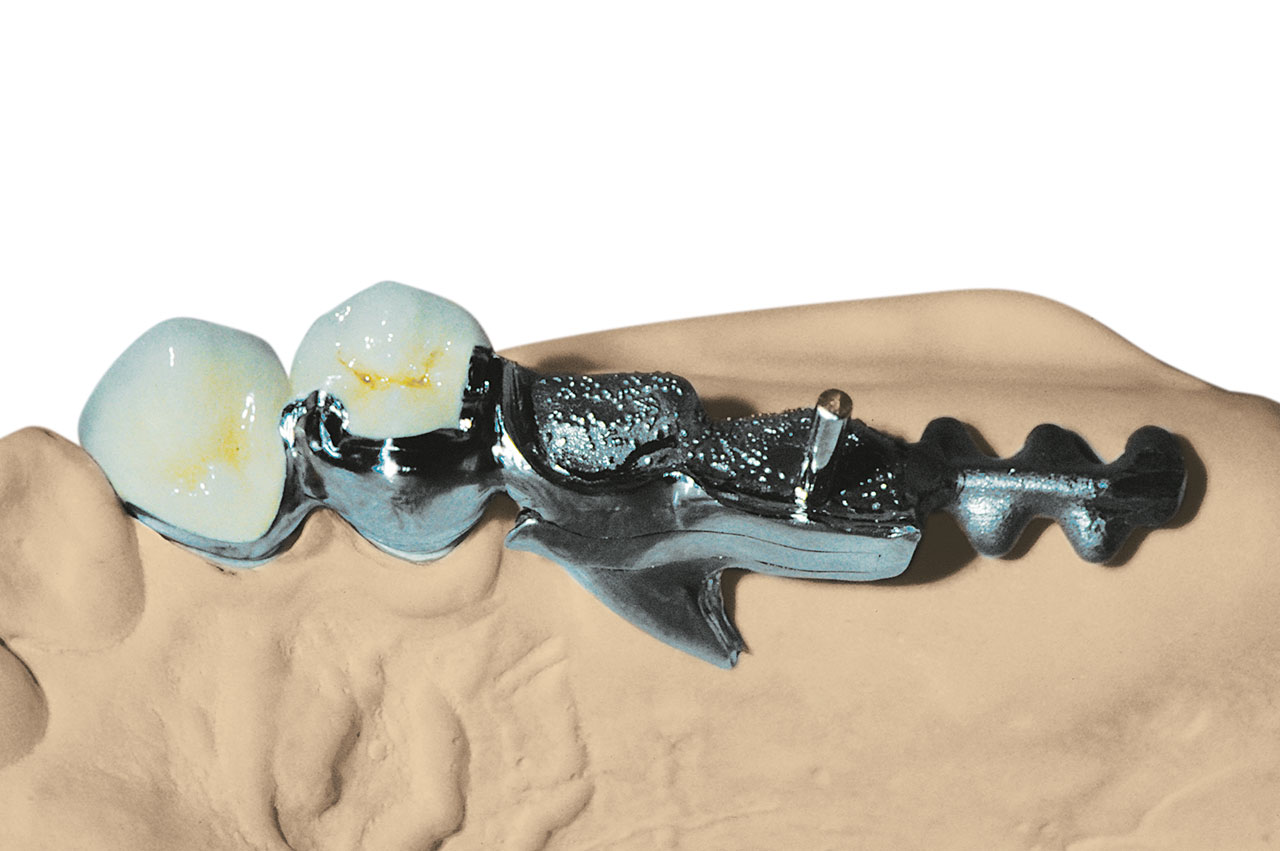

The sprue remains as a holder until the lock blade is fitted into the lock housing. After the sprue is cut off, the sprue attachment is transformed into the lock opener.

The view into the lock housing after casting with remanium® star.

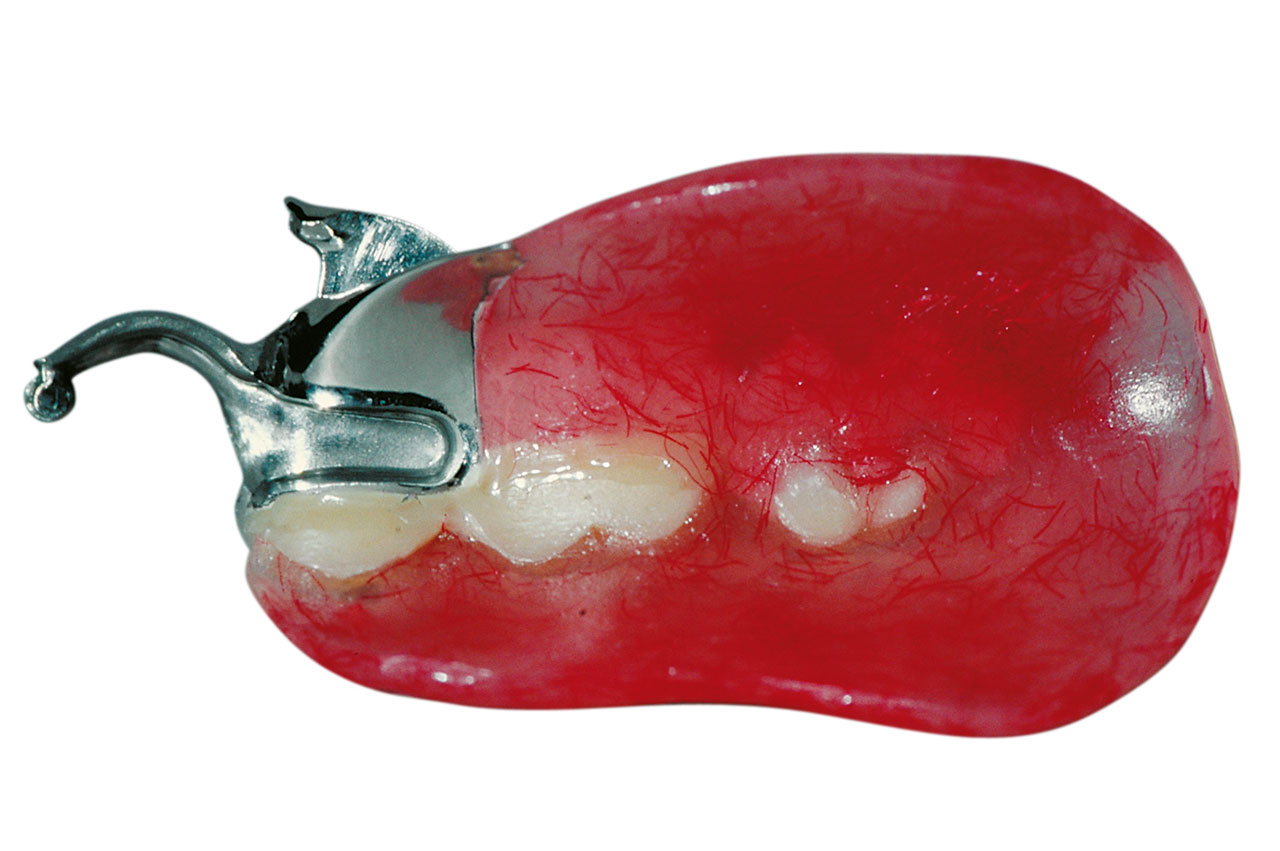

The finished unilateral free-end denture with opened ...

...swinglock (basal view).

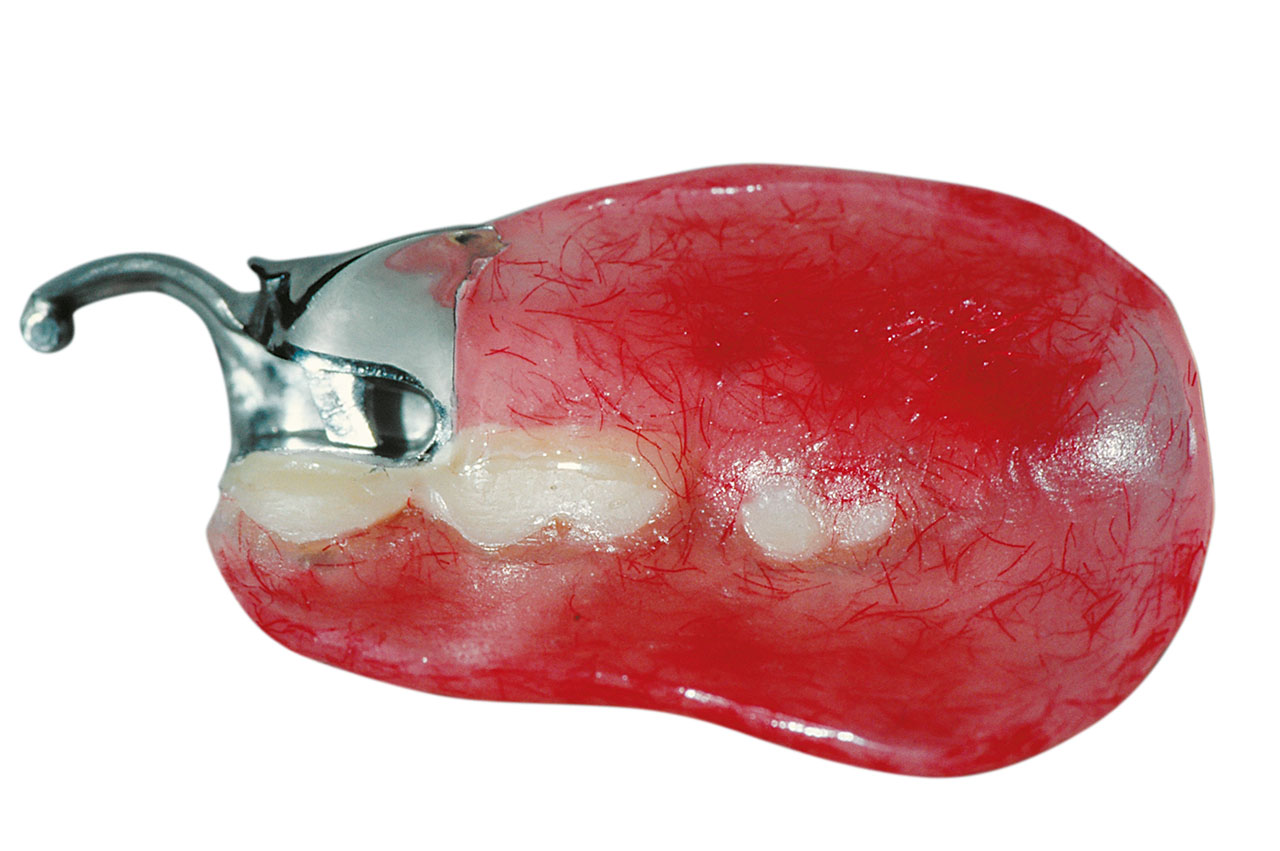

The finished unilateral free-end denture with closed...

...swinglock (basal view).

In order to minimize the leverage effect regarding the support teeth, the area of the maxillary tuberosity must be sufficiently covered by the resin saddle and be relined if needed.
