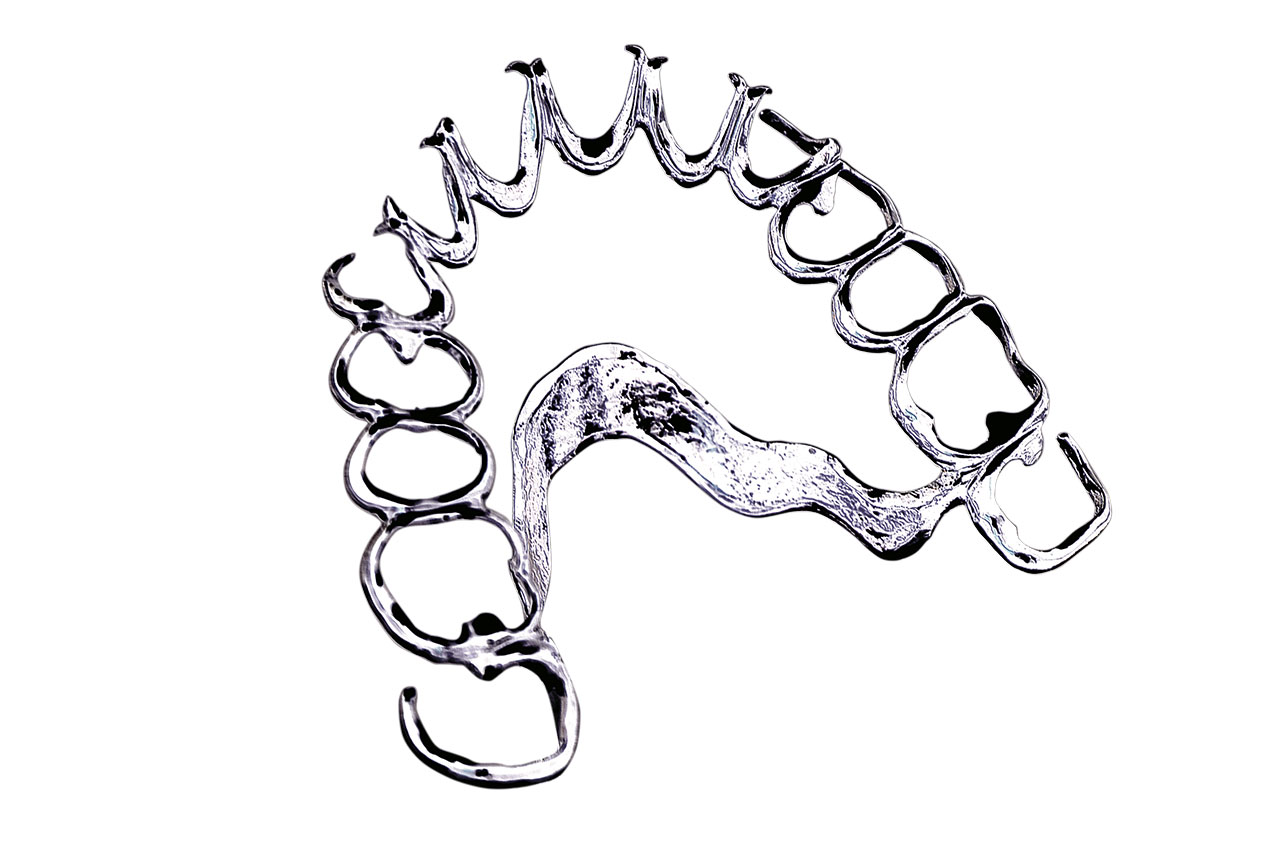

Fabrication of the upper cast partial denture using silicone duplication

Casting

remanium® alloys

User friendly state-of-the-art technology.

An optimum of easy working characteristics and high mechanical values, for every application.

Assurance through certified quality
SchmelMolt reflection makes the point of casting easy to recognise
Highest biocompatibility
Excellent laser welding qualities
Easy to polish to a high lustre

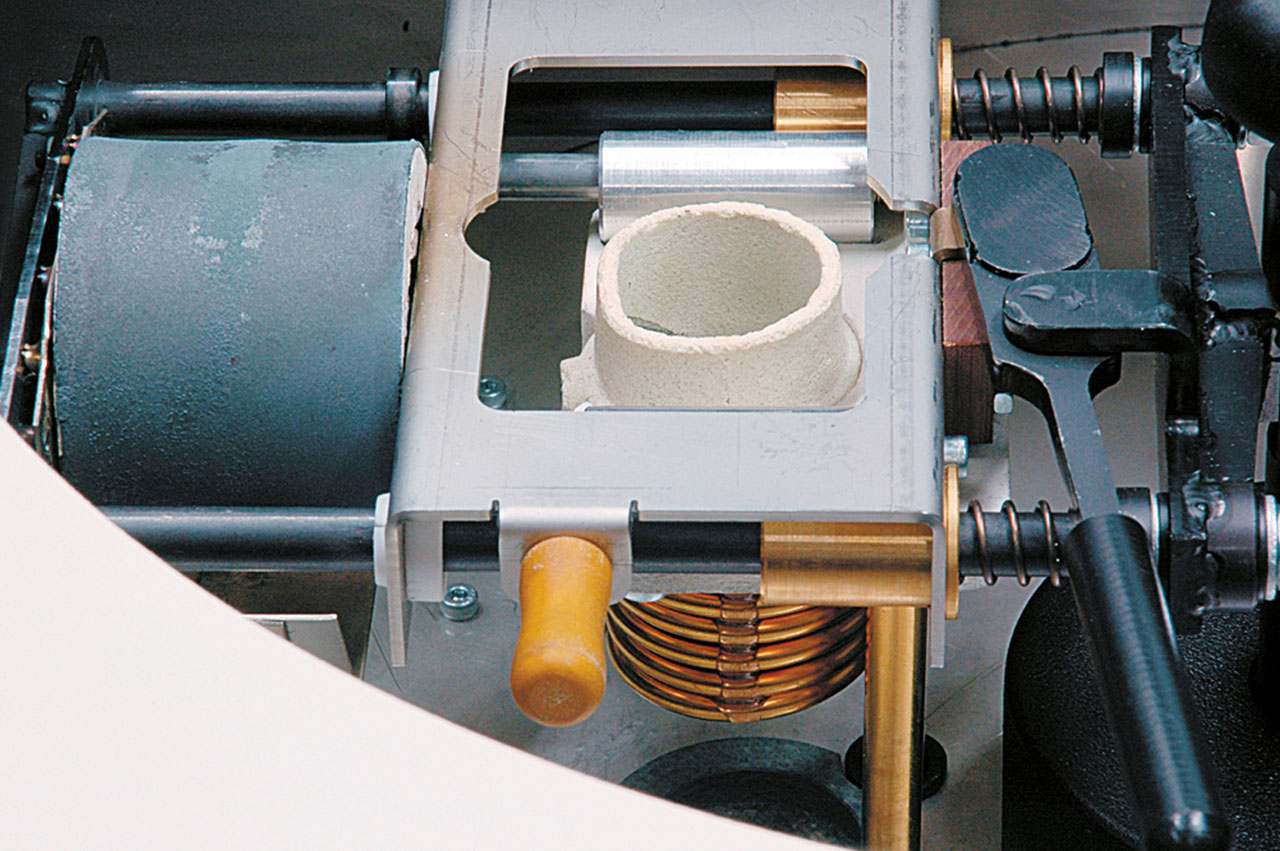

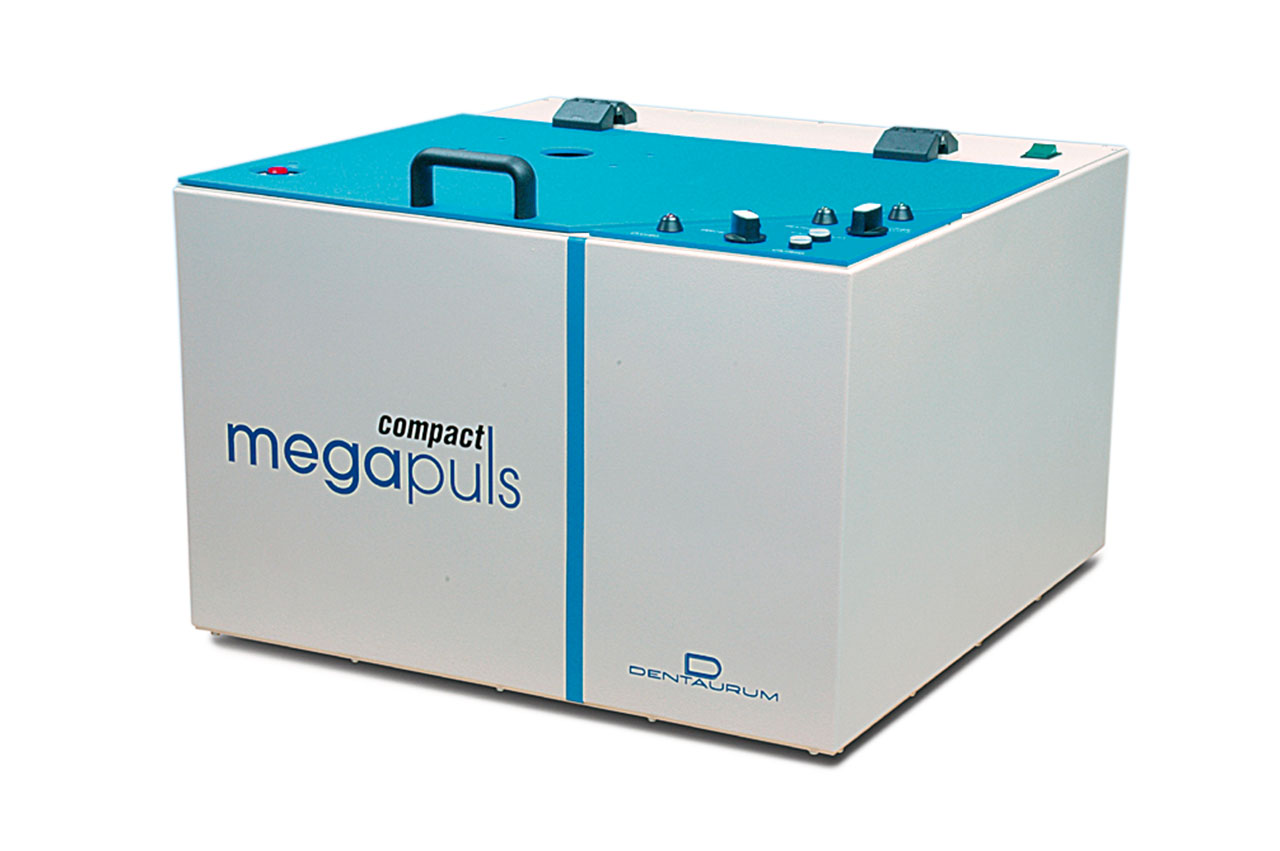

Megapuls compact – Exceptionally compact, high performance, induction casting machine.

Easy to use locking mechanism for various casting ring sizes. Very short melting cycles enable quick casting sequences.

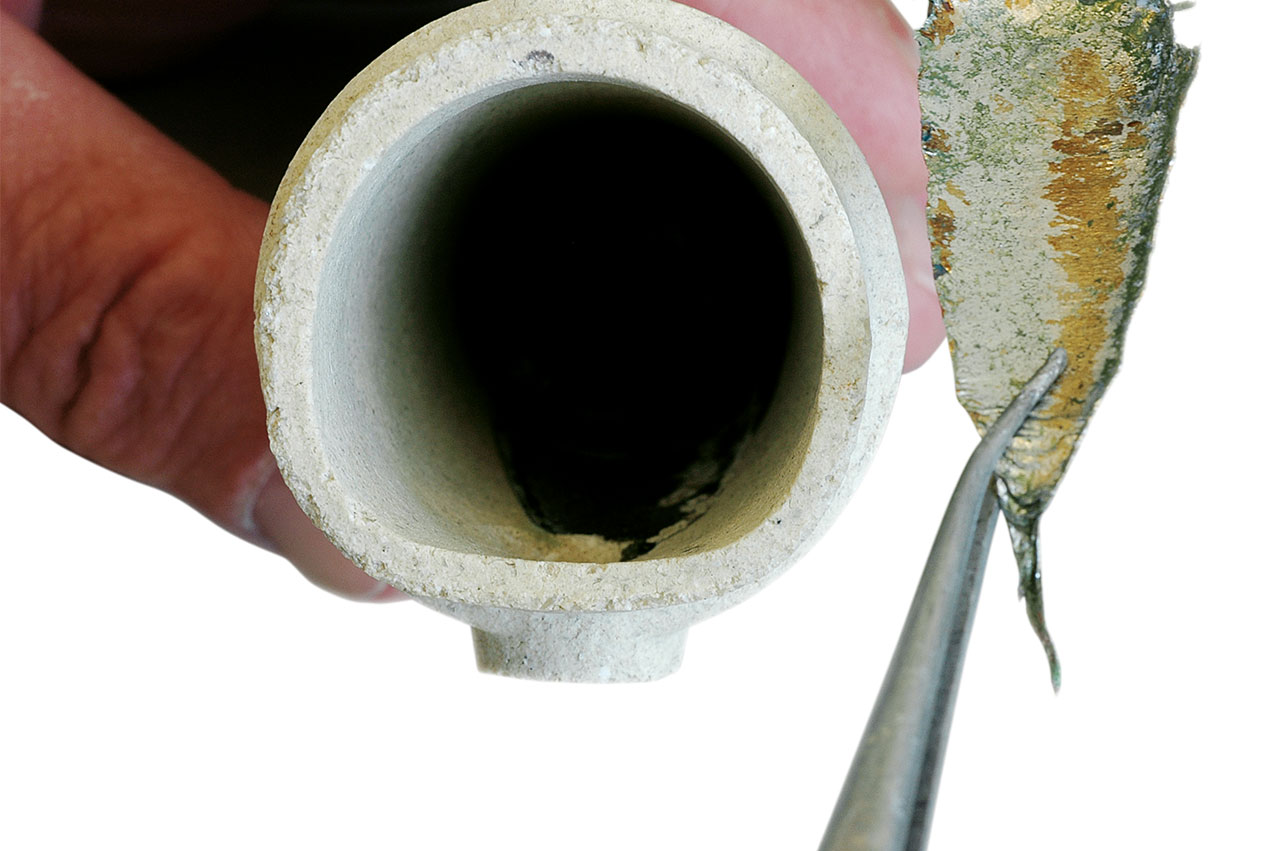

Always remove casting residues from the crucible! In order to avoid contamination.

Tiegel immer ohne Metall im Ofen vorwärmen! Lebensdauer der Tiegel erhöht sich!

It is advisable to pre-heat the alloy when using a less efficient casting machine!

Induction heating:

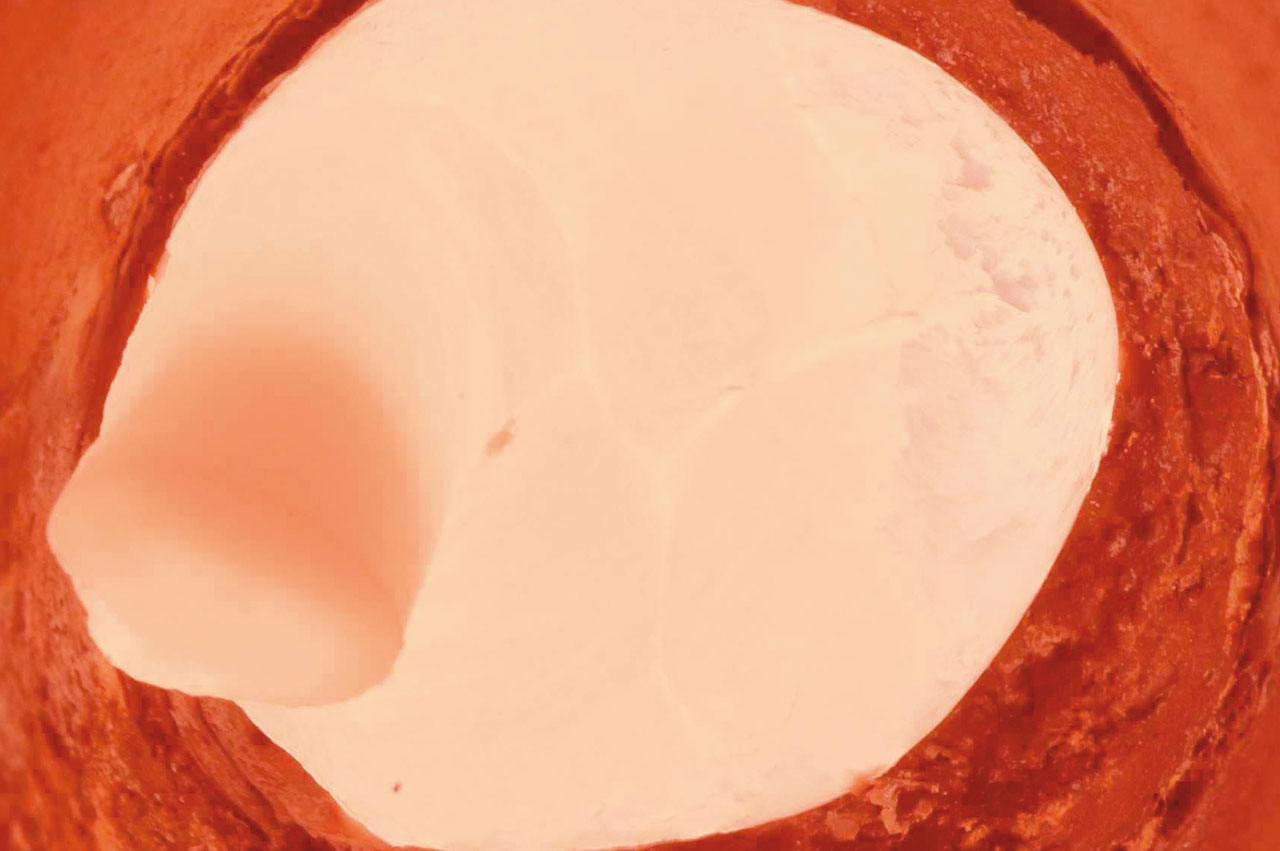

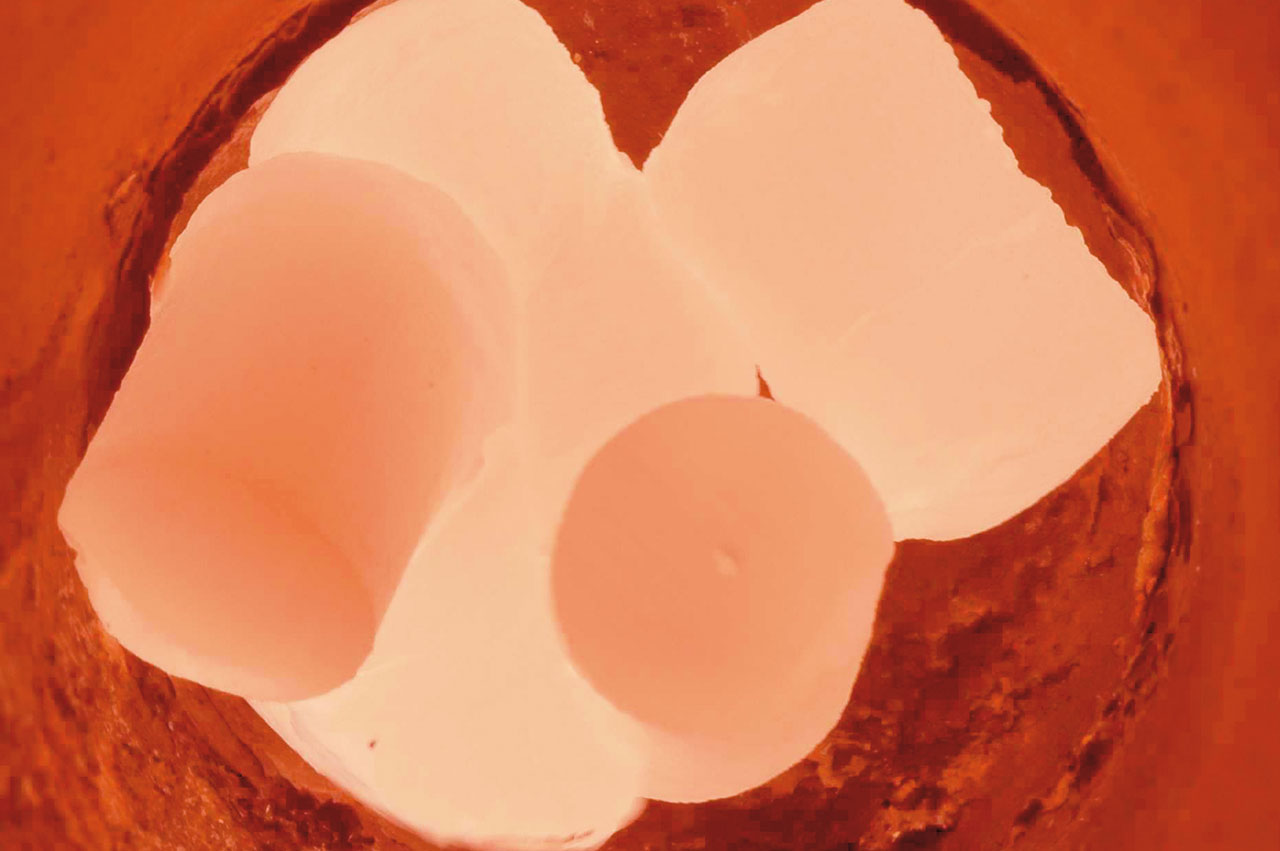

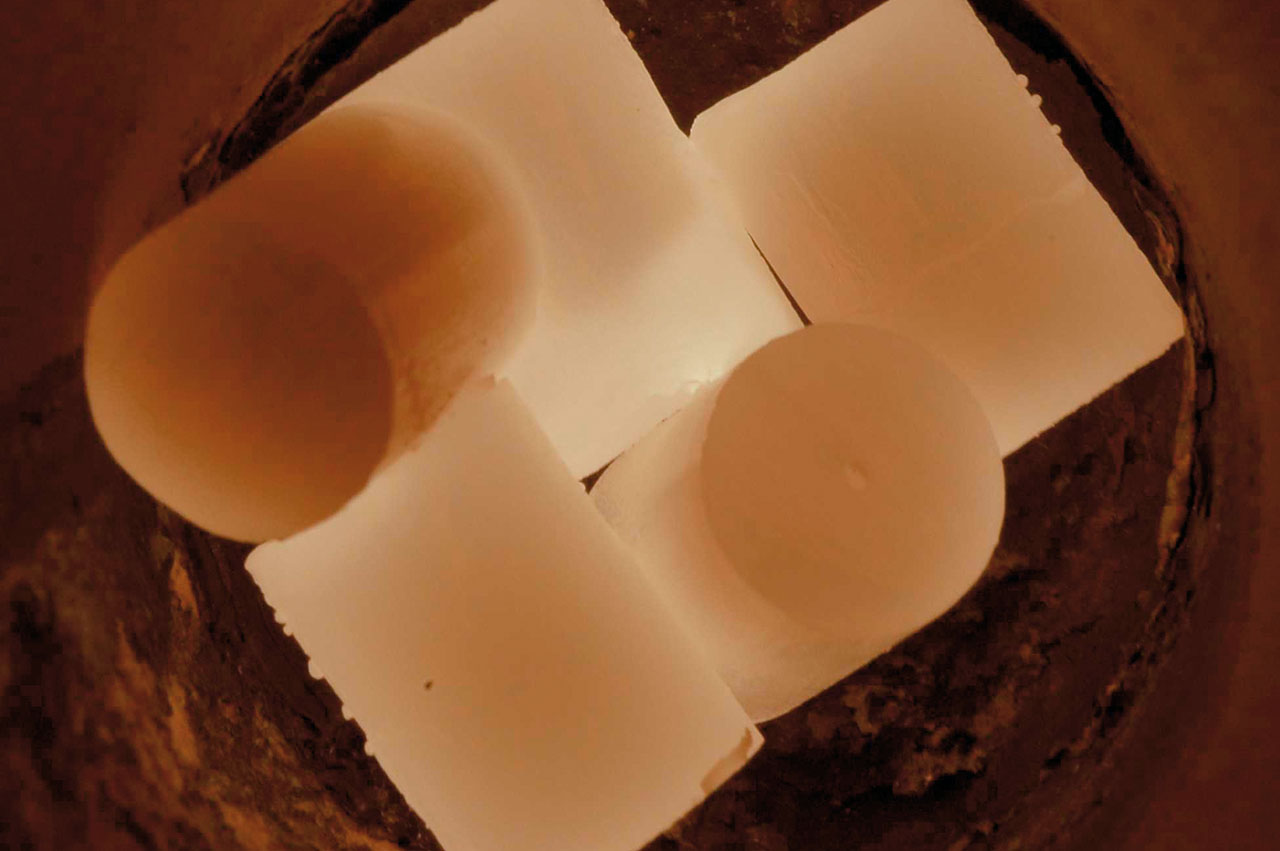

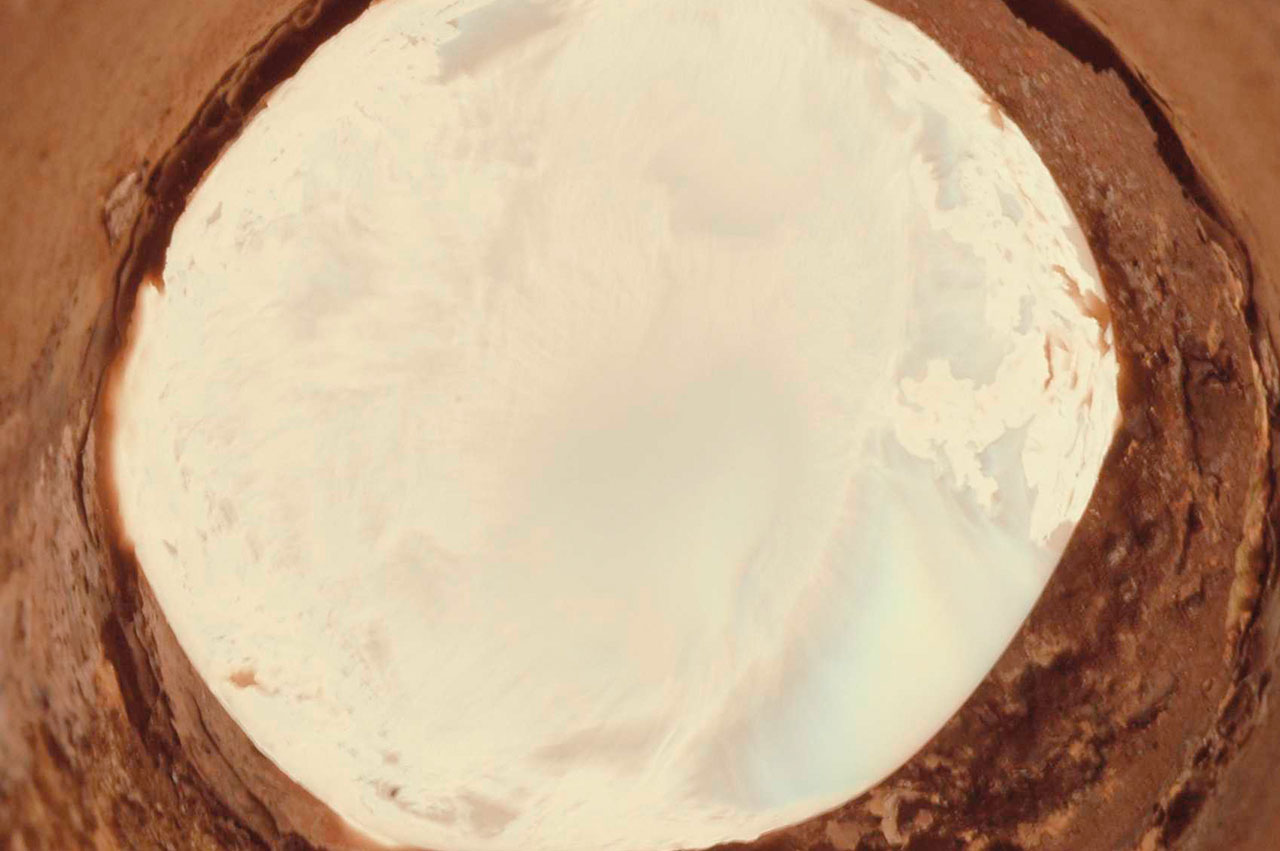

During gentle melting in the induction casting machine, the oxide layer of the remanium^® alloy cracks, this signals the correct time to cast the metal.

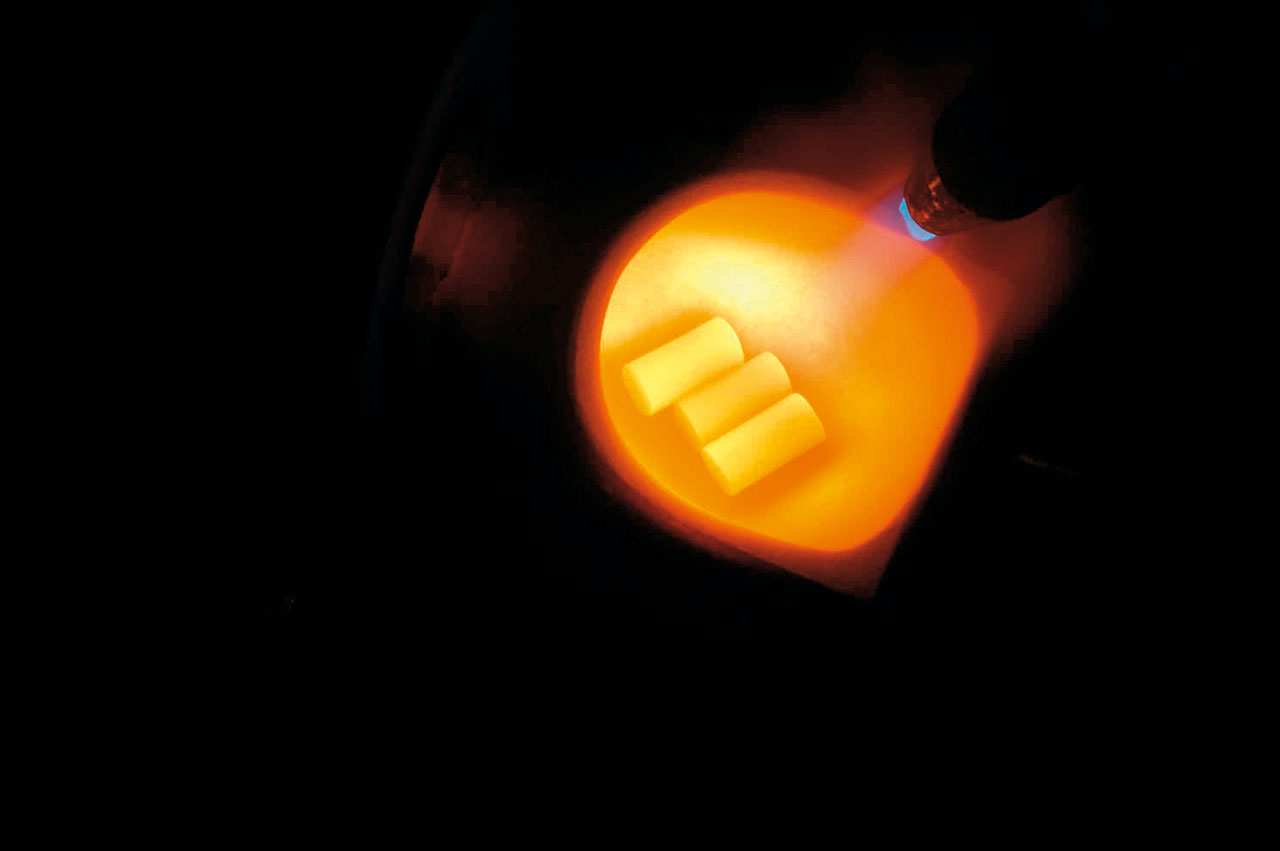

Pre-heat the crucible in the furnace! When melting the metal with the torch, the oxide layer must not be allowed to crack.

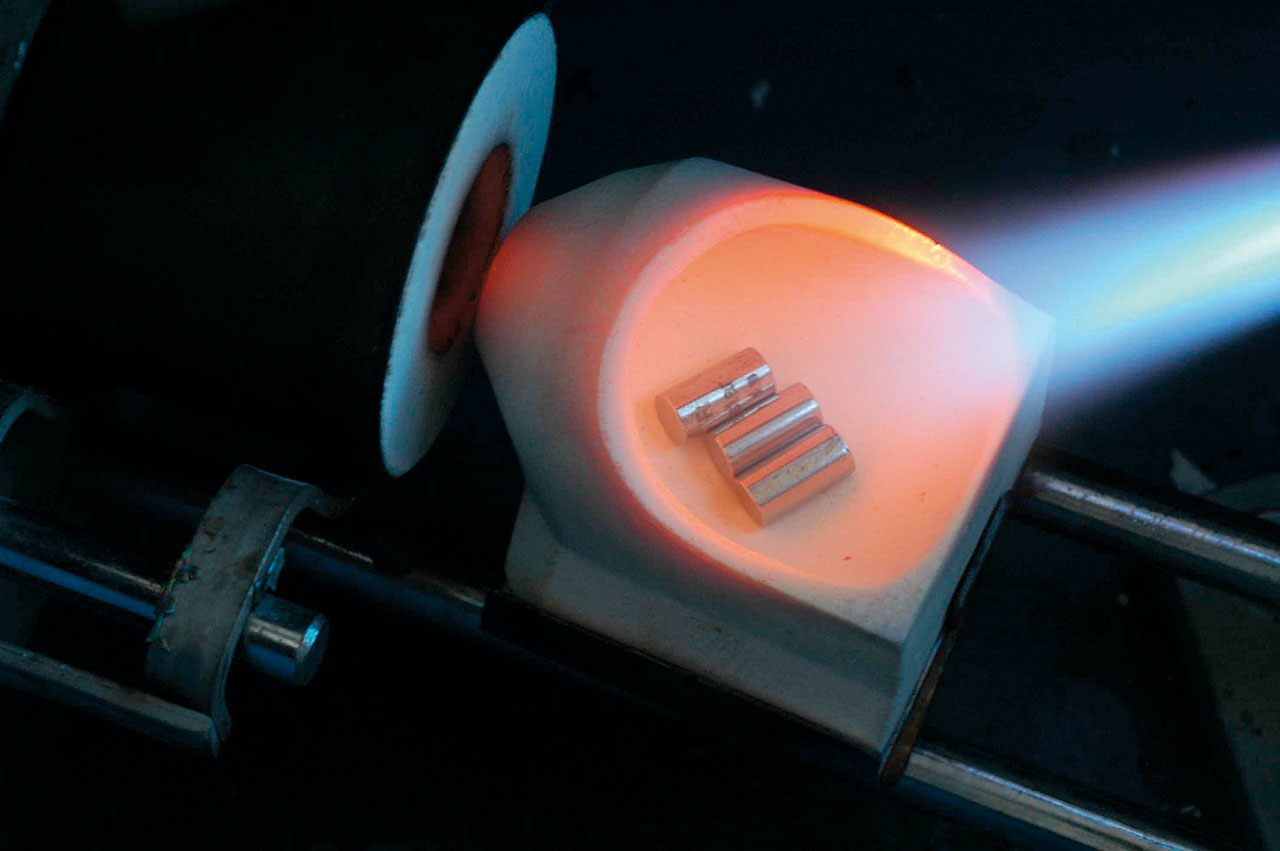

Torch casting:

A correctly adjusted burner with an approx. 5mm long flame (propane – oxygen)

Propane = 1 bar
Oxygen = approx. 2 to 3 bar.

Best results are achieved by using a burner with a mulit-oriface spray head.

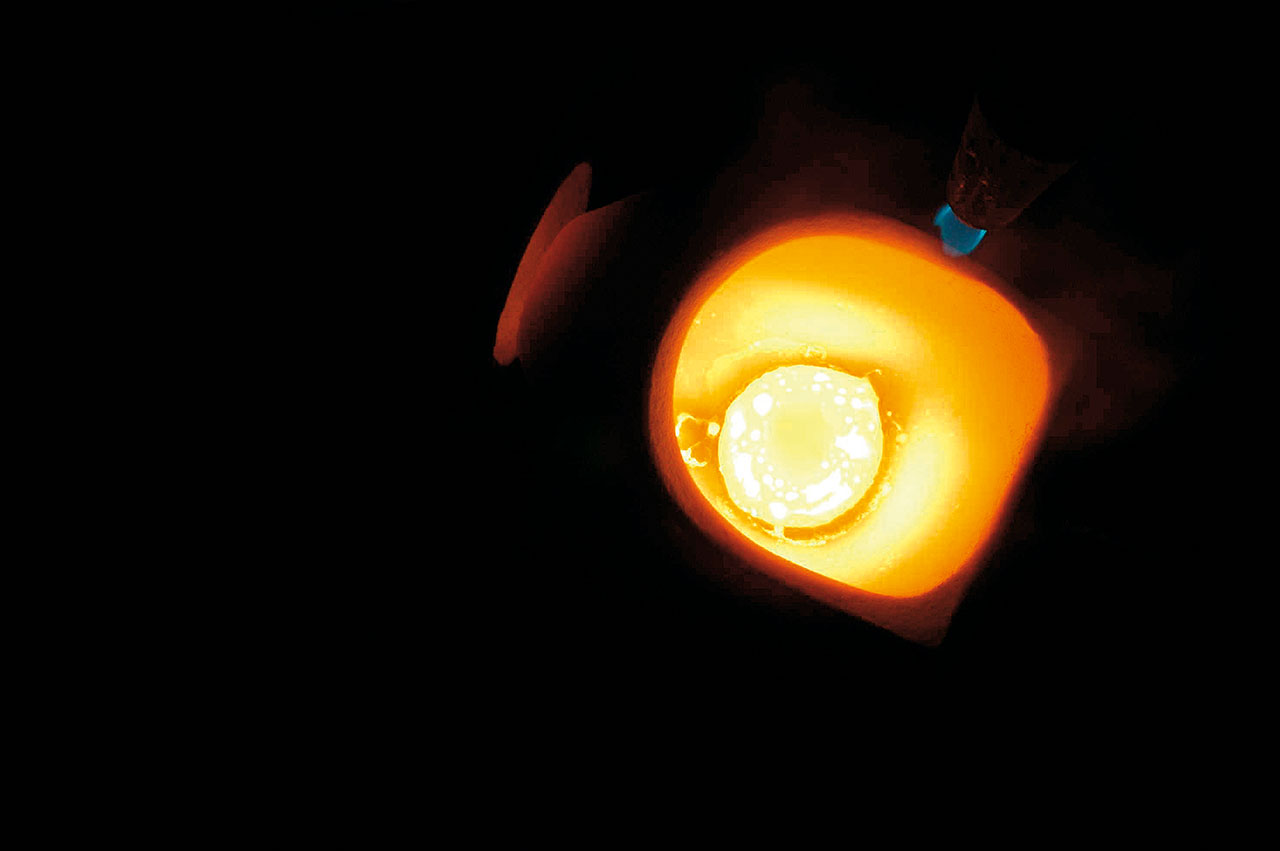

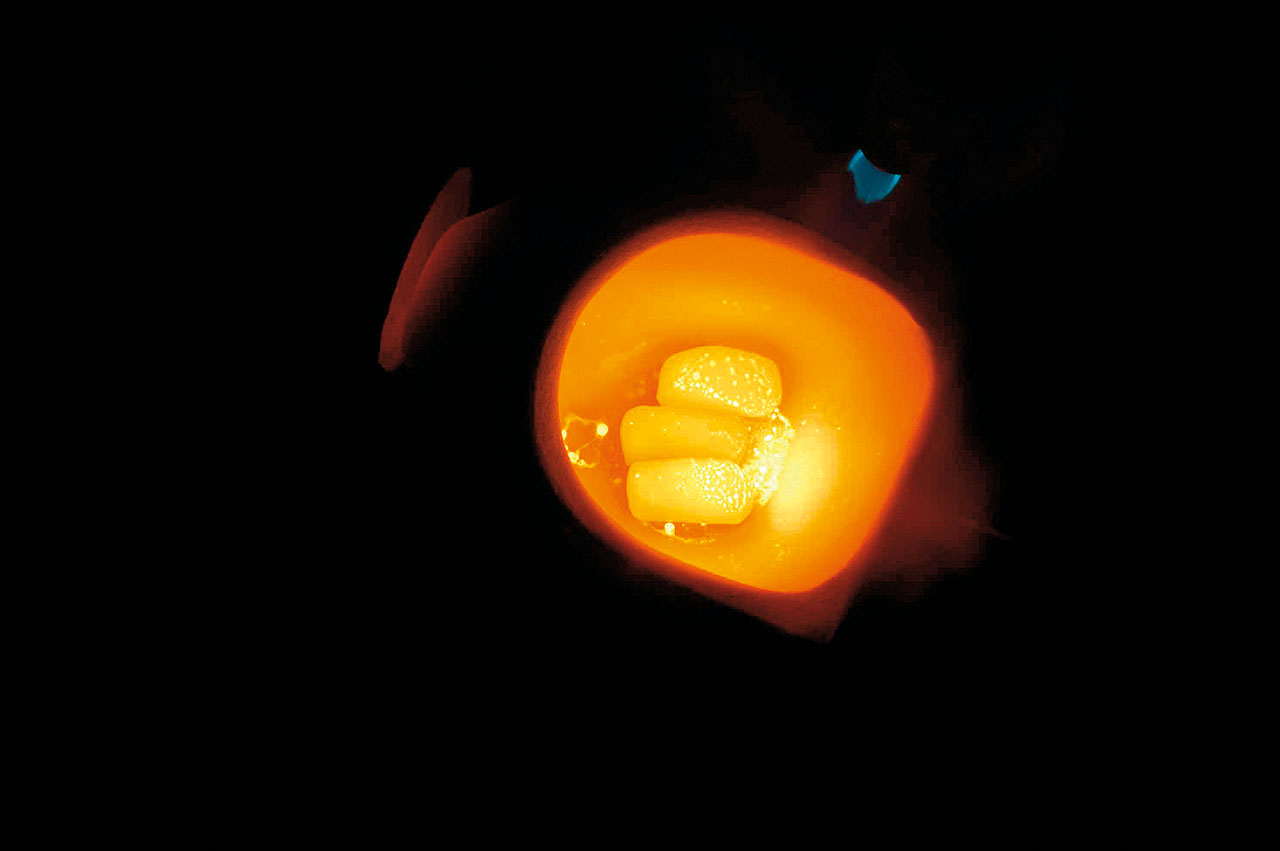

The correct time to cast can be observed when the casting ingots collapse and the molt metal begins to move under the pressure of the flame.
