Cast Partial Dentures

Fabrication of the lower cast partial denture using gel duplication

Wax construction

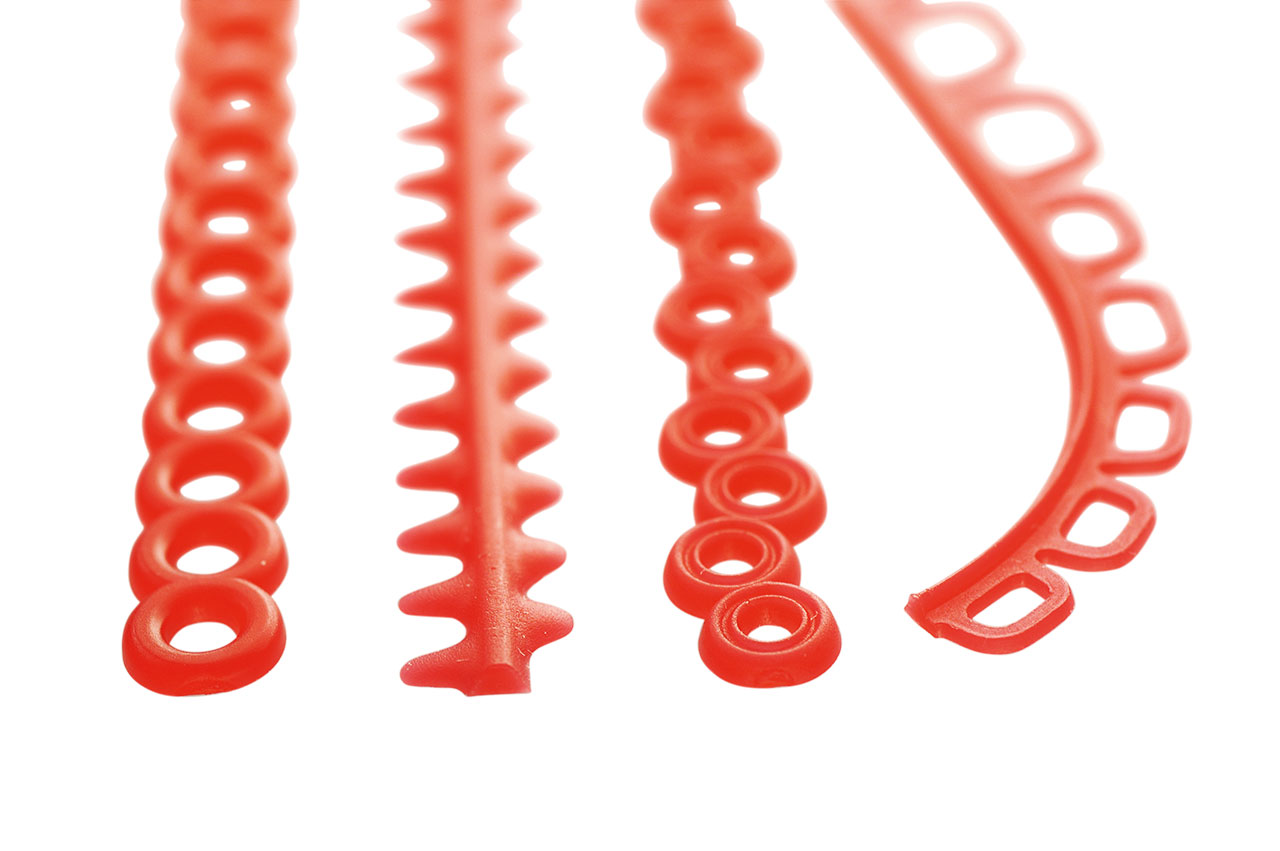

 Well adaptable retention patterns for every area of application.

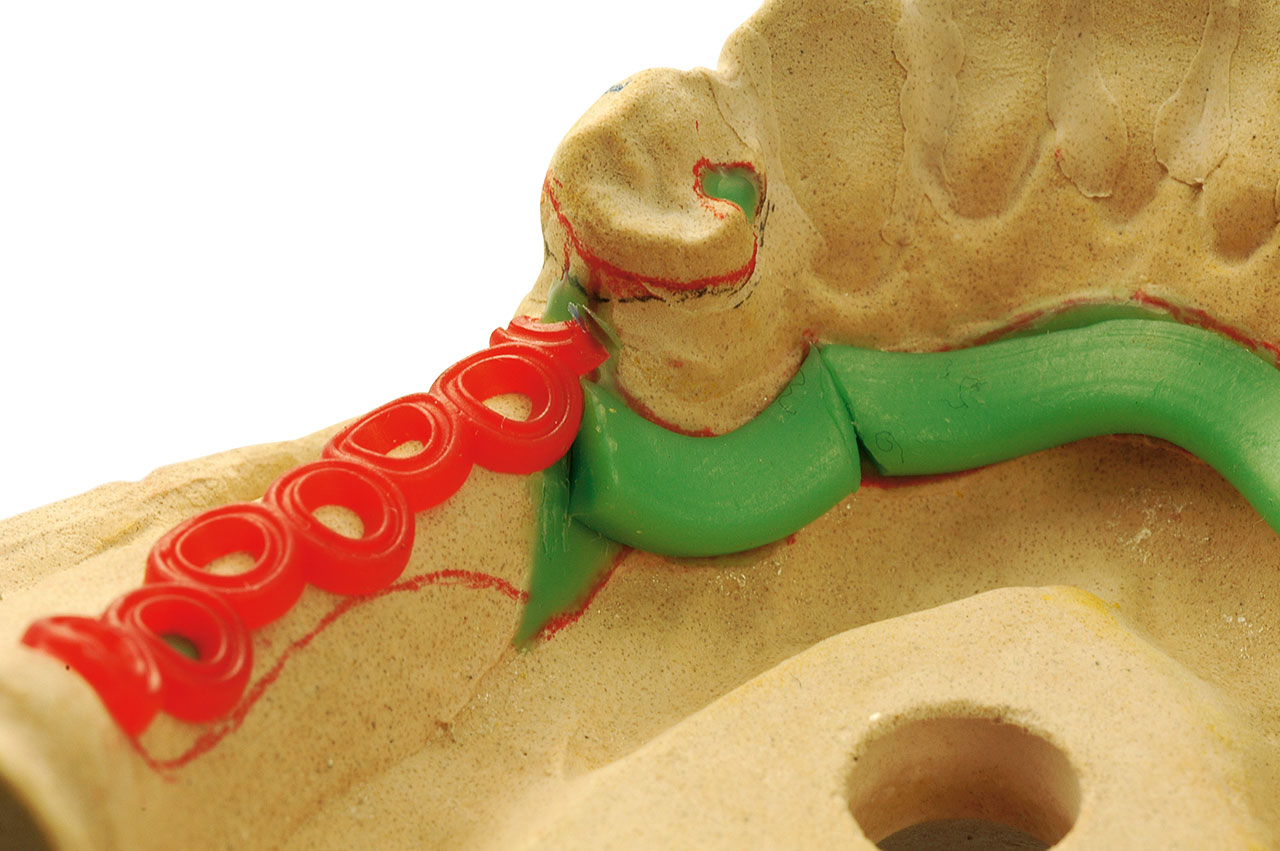

The wax patterns are adapted exactly, without crushing.

The edges are sealed with a hot wax knife.

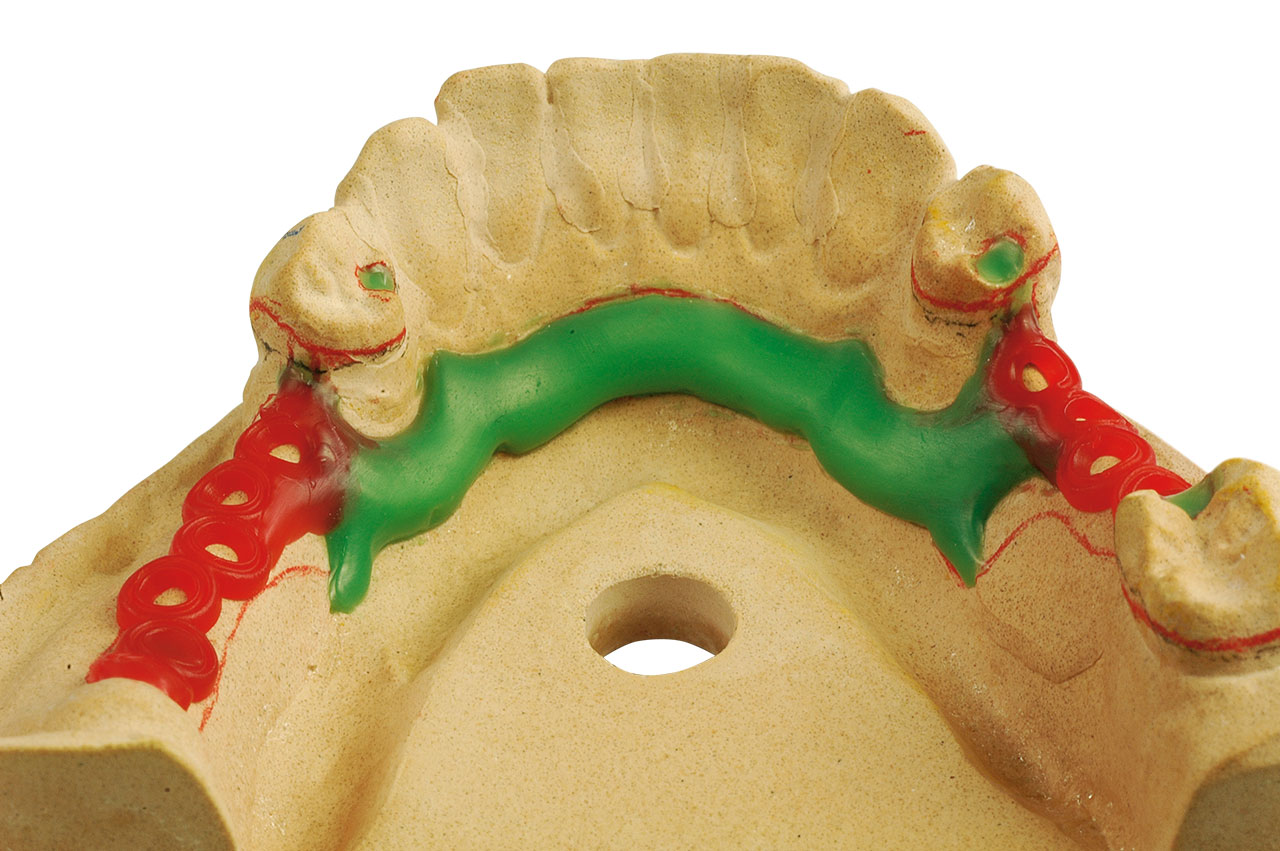

The prefabricated clasps and the occlusal rests are adapted onto the model and then joined with melted wax to the small connector.

The finishing line is completed with thin wax wire.

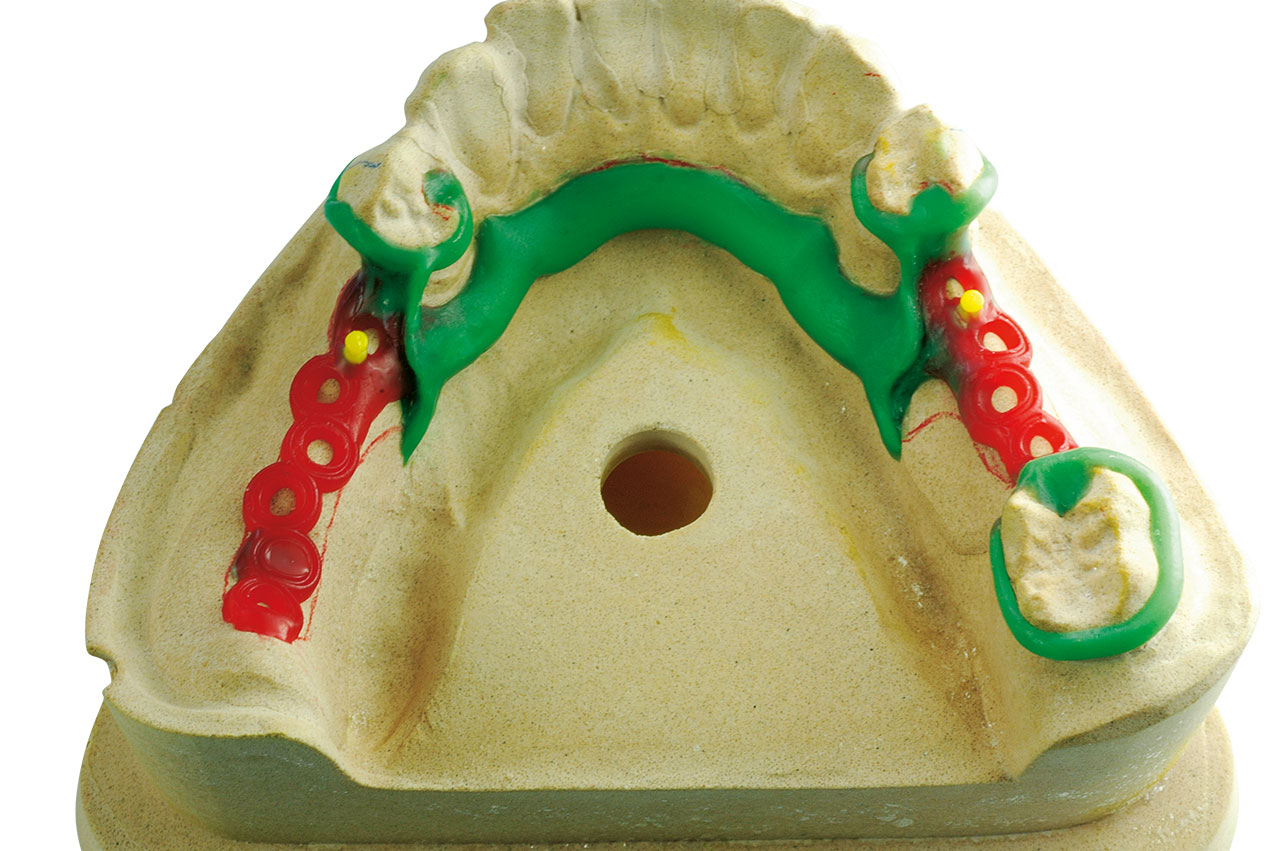

The finished wax-up!

The cleaner and more precise the wax-up the easier and less time consuming the metal framework will be to finish and polish!

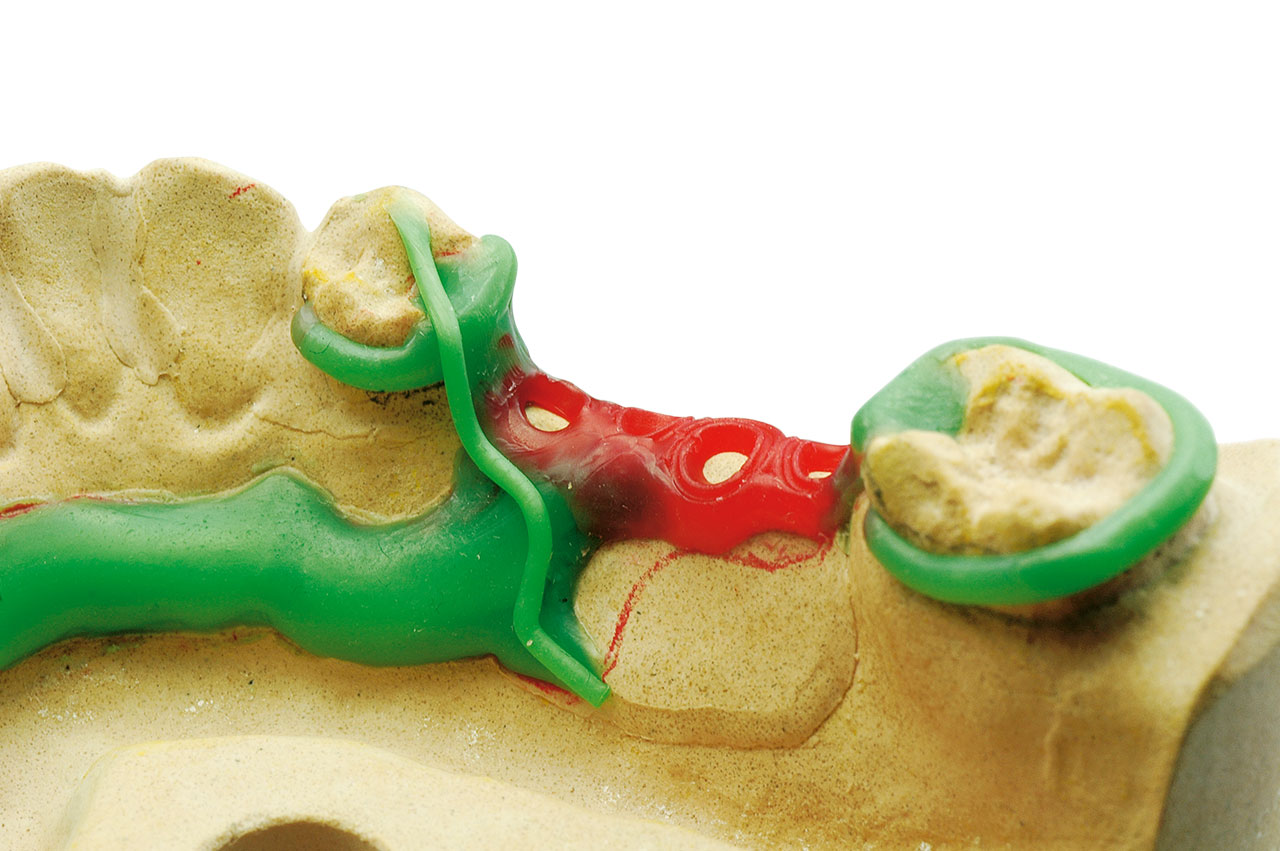

A detailed view of the clean, smooth junctures.
